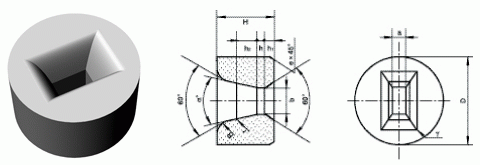

Drawing Dies - Type 42
| Type | Dimensions | ||||
| D | H | a | b | h | |
| 42- | 20.00 | 12.00 | 1.00~1.90 | 1.90~3.10 | 2.00 |
| 25.00 | 15.00 | 1.00~3.90 | 3.90~6.20 | 2.50 | |
| 35.00 | 18.00 | 1.10~4.90 | 7.20~11.40 | ||
| 45.00~60.00 | 20.00 | 1.40~5.90 | 12.80~31.00 | 3.00 | |
